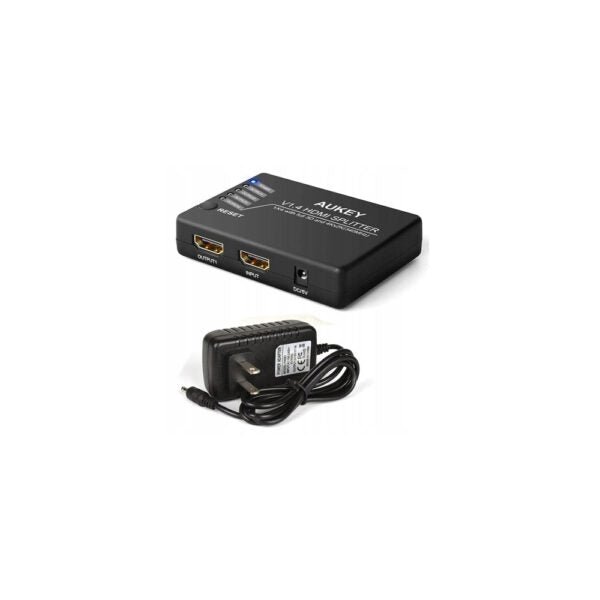

AUKEY HA-H02 1×4-port HDMI Amplifier Splitter V1.4

Main features:

• Black colour
• Connect one HDMI source device to four different displays
• Supports Full 3D and 4K x 2K resolutions at 30 Hz
• Supports 340MHz/3.4Gbps per channel (10.2Gbps per channel)
• Supports a color depth of 12 bits per channel (36 bits all channels)
• HDCP 1.3 support
• Supports uncompressed audio such as LPCM
• Supports compressed audio such as DTS Digital, Dolby Digital including DTS-HD and Dolby True HD
• Compatible with HDMI devices such as computers, game consoles, TVs and monitors that support HDMI 1.4 or earlier No drivers needed - just plug and play

ABS material

Reset button

Lead-free components (RoHS compliant)

LEDs:

• Power
• Output 1
• Exit 2
• Exit 3
• Exit 4

Ports:

• Four (4) HDMI outputs
• One (1) HDMI input
• DC 5V power port

Specification:

• Input: HDMI x 1
• Maximum signal link range: 4K x 2K at 30 Hz
• Video output: HDMI 1.4 with full 3D and 4K x 2K at 30 Hz + HDCP 1.3
• HDMI output x 4
• Vertical frequency range: 50/60 Hz
• Vertical amplifier bandwidth: 3.4Gbps/340MHz
• Interlaced resolutions (50/60Hz): 480i, 576i, 1080i
• Progressive resolutions (50 / 60Hz): 480p, 576p, 720p, 1080p, 4K x 2K at 30Hz
• Power Adapter Specifications: Input: AC 100-240V, 50/60Hz Output: DC 5V == 1A

Note: Power supply with US terminal - an adapter is included with the purchase

Unit Dimensions: 0.7 x 3.1 x 2.28 inches (H x W x D, Approximate)

Weight: 56.4 g

Product Requirements:

• Power socket
• HDMI-enabled devices
• HDMI cable
